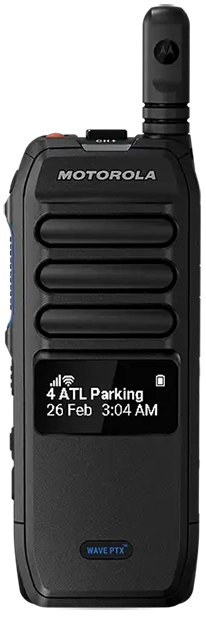

Motorola TLK 200 WAVE PTX Broadband Push-to-Talk Radio B & C Communications

Motorola Solutions

TLK 200

The TLK 200 is a rugged broadband push-to-talk radio built for crews who can't afford to lose contact. It moves between carrier networks on its own, cuts through background noise, and runs well past a full shift on one charge. Add the SafeGuard package to get automatic fall detection, lone worker check-ins and priority emergency calling, so your team stays protected wherever the job takes them.

Performance Characteristics

Powered by: WAVE PTX

Network
4G LTE, FDD bands B2, B4, B5, B7, B12, B13, B17, B66

Channel capacity
96 channels

Contact list
1,000 contacts

Standard battery chemistry type:
Li-ion, 2500 mAh (PMNN4578)

Battery life (based on a 5-5-90 duty cycle):
18 hours

Encryption
AES-256

Physical Characteristics

Dimensions H x W x D (without antenna)
5.47" x 2.17" x 0.94" (139mm x 55mm x 24mm)

Dimensions H x W x D (with antenna)
6.94" x 2.17" x 0.94" (176.4mm x 55mm x 24mm)

Weight (with battery)
6.79 oz (192.6g)

Display
2.5-line monochrome display

Housing
Antimicrobial

Charging port
USB Type-C

Audio jack
2.5mm with mechanical lock

User Environment

Operating temperature
-20ºC to 60ºC (radio) / -10ºC to 60ºC (with battery)

Storage temperature
-40ºC to 85ºC

Mil spec
810C, D, E, F, G, H

IP Standards
IP67

Request A Quote

Coverage Without Compromise

Multi-carrier MVNO SIM that connects to the strongest available network
Automatic switch to the next strongest network if the signal drops
Wi-Fi calling over 2.4 + 5 GHz networks
North American roaming across the US, Canada and Mexico (SafeGuard)
Voice messaging for updates that don't need a live call
Call fallback that turns a missed PTT call into a recorded message

Clear Audio In Loud Places

Most advanced noise suppression of any TLK device
Integrated wideband speaker
Upgraded processor, expanded memory and increased storage
Open Bluetooth pairing for wireless earpieces and audio accessories

Tough Enough For Every Shift

18-hour battery life
IP67 and MIL-STD-810 rated
Glove-friendly, ergonomic design
2.5-line monochrome display
Antimicrobial housing for shared devices

Safety Built In

Dedicated emergency button
Emergency Calling and Alerting (SafeGuard)
Remote emergency activation by dispatch (SafeGuard)
Fall Alert (SafeGuard)
Lone Worker (SafeGuard)

Location And Device Management

GPS, GLONASS, Galileo, BeiDou and A-GNSS location tracking
Location-based talkgroups (SafeGuard)
Channel lock for supervisors and safety officers
Room-level, multi-floor indoor location with Location Tech integration
Centralized provisioning, remote software updates and talkgroup setup via the WAVE PTX Admin Portal
Interoperable with smartphones, tablets and MOTOTRBO radios via WAVE PTX™
WAVE PTX dispatch compatible

3-Year Warranty

3-year hardware repair for manufacturing defects
Software updates for the latest features and security
Dedicated technical support, Monday to Friday (8x5)

Specifications

Network: 4G LTE
Channel Capacity: 96 Channels
GPS: GPS, GLONASS, Galileo, BeiDou, A-GNSS
Wi-Fi: 802.11 a/b/g/n/ac 2.4/5.0 GHz, WPA2/WPA3
Bluetooth: 5.0 LE
SIM: 1x 4FF Nano SIM
Sensor: Accelerometer
Audio Output: 1W / 3W

Add accessories that fit the way you work, from wireless earpieces and discreet audio to holsters, belt clips and bulk charging.

Antenna [+]

	AN000508A01 TLK 200 LTE Antenna (NA)
	32012144001 Gray Antenna ID Band (pack of 10)
	32012144002 Yellow Antenna ID Band (pack of 10)
	32012144003 Green Antenna ID Band (pack of 10)
	32012144004 Blue Antenna ID Band (pack of 10)
	32012144005 Purple Antenna ID Band (pack of 10)

Batteries [+]

	PMNN4578 Lithium Ion (Li-ion) 2500 mAh Battery
	PMLN8782 TLK 200 Battery Door

Carry Accessories [+]

	PMLN7128 Heavy-Duty Swivel Belt Clip
	PMLN8795 TLK 200 Swivel Carry Holster
	PMLN6074 Nylon Wrist Strap

Chargers [+]

	PMLN8569 6-Pocket Multi-Unit Charger
	PS000150A31 USB-A Wall Charger, 5V/1.5A, 240VAC (NA/Japan Plug). USB cable sold separately.
	PMKN4294 USB-C to USB-A Cable

Wired Audio Accessories [+]

	PMLN7159 Adjustable D-Style Earpiece with In-Line Microphone and Push-To-Talk, Black
	PMLN7189 Swivel Earpiece with In-Line Microphone and Push-To-Talk
	PMLN7156 Mag One Earbud with In-Line Microphone and Push-To-Talk, Black
	PMLN7157 2-Wire Surveillance Kit, Black
	PMLN7158 1-Wire Surveillance Kit, Black
	PMLN8191 1-Wire Clear Tube Earpiece, 2.5mm Angled Single Pin
	PMMN4125 RM250 Wired Remote Speaker Microphone, Large (IP67)

Wireless and Secondary Audio Accessories

	PMLN8740 EP910E Bluetooth Earpiece with Push-To-Talk
	PMLN8298 WP300 Wireless Bluetooth Control Pod with PTT Button. Requires compatible earpiece: PMLN8190, PMLN8077 or PMLN8125
	PMLN8401 WP300 Wireless Bluetooth Push-To-Talk Pod with Translucent Tube Earpiece
	PMLN8332 Vehicle Mount for WP300
	PMMN4127 WM500 Wireless Remote Speaker Microphone
	PMLN7560 Receive-Only Earpiece with Translucent Tube and Rubber Eartip for RM250 and WM500 RSMs
	PMLN8077 Single Pin Over-the-Ear Earpiece for WP300 Bluetooth Control Pod
	PMLN8125 Single Pin Short Cord Earpiece for WP300 Bluetooth Control Pod
	PMLN8190 1-Wire Clear Tube Earpiece, 2.5mm Straight Single Pin for WP300 Bluetooth Control Pod
	RLN6242 Low Noise Kit with Translucent Tube and 1 Clear Rubber Eartip
	5080384F72 Replacement Foam Plugs for RLN6242. Noise Reduction = 24dB. Pack of 50 pairs.
	RLN6282 Replacement Standard Clear Rubber Eartip for RLN6242. Pack of 50.
