Industry First Dual Band P25 Voice Pager

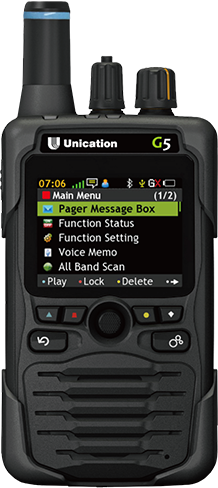

The Unication G5 public safety pager is a rugged pager that supports Analog 2-Tone Conventional, P25 Trunking, and P25 Conventional. It is available in UHF & 700-800 MHz and VHF & 700-800 MHz frequencies.

Unication G5 Features

• Supports 516 Analog Channels/ 256 Control Channels
• IP67 Rating (Waterproof and Dustproof)
• Submersible Up to 3 ft for 30 Minutes
• High Impact Resistant Color Screen
• Rugged Housing
• 2-Year Standard Warranty (5-Year Option)
• Custom Wav File Alerts
• Out of Range Alert
• Text Messaging / Image Transfer
• Bluetooth
• 100 Minutes Voice Storage/Voice Memo
• Software Defined

Unication G5 Key Features

• Accommodates multiple P25 trunked and P25 conventional systems
• Supports the 800 MHz analog frequencies
• Supports up to 256 control channels per trunked system
• Supports full spectrum scan for P25 trunked systems
• Supports multiple TGIDs for monitoring and alerting
• Supports priority TGID scan
• Supports multi-select for efficient use of traffic channels
• Allows for customized alerts using WAV/MP3 files
• Alerting options based on a selector knob setting
• Each band supports P25 trunking, P25 conventional, conventional channel monitoring and 2-tone decoding
• Full 2-tone function mode support (selective call, monitor, scan options)
• Supports multiple 2-tone codes per frequency

Unication G5 Models

G5 Dual Band Voice Pager - VHF & 700-800 MHz

Frequency Range:

VHF: 136-174 MHz/763-776MHz, 851-870 MHz

G5 Dual Band Voice Pager - UHF & 700-800 MHz

Frequency Range:

UHFA: 330 - 400 MHz/ 763-776MHZ, 851-870 Mhz
UHFB: 380 - 430 MHz/ 763-776MHZ, 851-870 Mhz
UHFC: 400 - 470 MHz/ 763-776MHZ, 851-870 Mhz
UHFD: 450 - 520 MHz/ 763-776MHZ, 851-870 Mhz

G5 Downloads

G5 Brochure
G5 Firmware & Programming Software
